Monoplace Hyperbaric Therapy System BLKS-303MK
Description Technical specifications Certificates Product Brochure
The system is applied for realisation of hyperbaric oxygenation (HBO) treatments.
-
Application scope:
- Blood supply disturbances
- Wounds and wound infections
- Gastrointestinal tract deceases
- Intensive care and resuscitation
- Plastic surgery and cosmetology
- Metabolic disturbances
- Acute hearing disturbances
- Reproductive function disturbances
The system includes baro-chamber, control unit, supporting base, gurney and patient bed.
- In order to monitor patient physiologic parameters (arterial pressure, photoplethysmography, heart rate, SpO2) and internal environment conditions (pressure, compression / decompression rate, humidity, temperature, CO2 and O2 levels) the system is equipped with ‘Portable Monitor for HBO therapy B-001’ and emergency alarm acoustic signal.
- To extend the range of available applications the system allows switching of diagnostic and life support systems (ALV, infusions etc).
- Close circuit O2 supply system ensures high economic efficiency.
- The pressurization can be achieved by oxygen or air.
- Fire safety is ensured owing to no external power sources are used, talking device is powered by 9V battery.
- For better patient comfort the complex features enlarged chamber space and better observation.

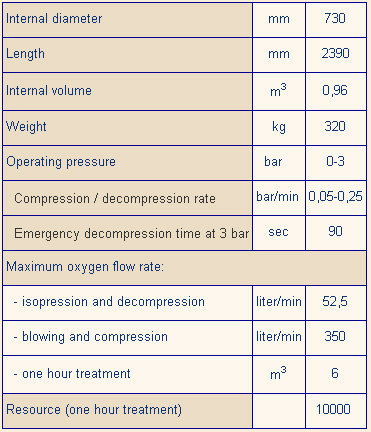

External width |
m |
0.84 |
External length |
m |
2.39 |
External height |
m |
1.45 |
Internal diameter |
m |
0.73 |
Internal volume |
L |
960 |
Weight |
kg |
320 |
Operating pressure |
kPa |
300 |
Rate of compression/decompression |
kPa/min |
5-25 |
Emergency decompression time at 300 kPa (3 kgf/cm2) |
sec |
90 |
Maximum oxygen consumption: |
||
- isobaric process |
L/min |
52.5 |
Projected lifetime |
years or |
8 |
18 months warranty is provided.
Our qualified engineers will install the chamber and train your operators to use and maintain the unit.
Quality Management System (QMS) is introduced and applied at the factory in the field of designing, manufacturing, maintenance and repair of hyperbaric systems ISO 9001:2000, ISO 13485:2003
