Active hyperemia chamber
Description Indications and contra-indications Technical specifications Certificates Product Brochure
The purpose of the device is healing of peripheral vascular abnormalities (arterial, venous, lymphatic).
The field of application: physiotherapy. The chamber is intended for using at patient care institutions, medical research institutions.
The chamber has its prototypes, such as barochamber «Kravchenko» which had its wide application in clinical practice within the Soviet Union territory; European analogue («Extremiter» by Czechia, «Vasculator» by Switzerland and a device from Holland).
The function of the chamber is leading of vacuum-compressor therapy (VCT) with the aim of restoration of circulation of the blood in lower and upper extremities. A structure of a medical seance is assigned with the help of in-built software.
The medical seance includes variation of the inside air pressure within the time interval.
The base of the active hyperemia method – cyclical alternation of vacuum and overpressure air in closed volume according to a specified algorithm of a medical seance.

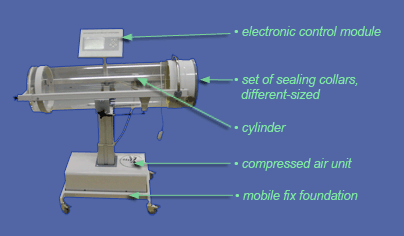

The chamber for active hyperemia includes the following:
- electronic control module,
- set of sealing collars, different-sized,
- cylinder,
- compressed air unit,
- mobile fix foundation.
Information on physiologic parameters of a patient (SpO2, pulse rate) and physical parameters inside the cylinder (pressure in a chamber, pressure in a sealing collars) in graphical and digital form is displayed on a liquid-crystalline monitor.
Indications and contra-indicationsТор
Indications for use of active hyperemia:
- Obstructive arterial involvement of extremities (for example, arteriosclerosis obliterans, diabetic angiopathy, sclerodermatitis);
- Functional disorders of extremity arteries (e.g. Raynaud's disease, Raynaud's syndrome);
- Disorder of venous and lymphatic circulation (stasis);
- Disorder of tissue trophism in extremities of disparate aetiology;
- Posttraumatic states;
- Prophylactic and medical rehabilitation;
- Another (e.g. in neurology, orthopaedy, rheumatology, cosmetology, professional and sport medicine).
Contra-indications: trombophlebitis.
Maximum overpressure |
kgf/cm2 |
0,2 |
Maximum depression |
kgf/cm2 |
0,2 |
Outer diameter of a cylinder |
m |
0,3 |
Length of a cylinder |
m |
0,9 |
Height of a chamber in lower position of a cylinder |
m |
0,82 |
Height of a chamber in upper position of a cylinder |
m |
1,02 |
Tilt angle of a cylinder |
degree |
±15 |
Weight of a system |
kg |
не более 100 |
Power supply |
V,Hertz |
220,50 |
Workspace – air from an in-built compressor |
||
The Quality management system is applied at our enterprise in the field of designing, production and servicing of medical hyperbaric chambers ISO 9001-2000, ISO 13485:2003
